Air Traffic Visual Control Tower Dublin

The new visual control tower has already established itself as a landmark building on the Dublin skyline. Such an iconic status is, in no small part, due to the light touch and modern elegance of a design that belies the functional robustness of the structure underneath. It is a worthy symbol of welcome to Dublin, Ireland’s gateway city.


Client
Irish Aviation Authority

Location
Co. Dublin, Ireland

Status
Construction

Area
2,766 sq.m


Expertise

The new facility comprises the cab (including the Visual Control Room or VCR) and its associated support facilities. The overall height of the main VCT structure, at precisely 86.9m, is dictated by an operational requirement of a control room floor at 80m above ground level.

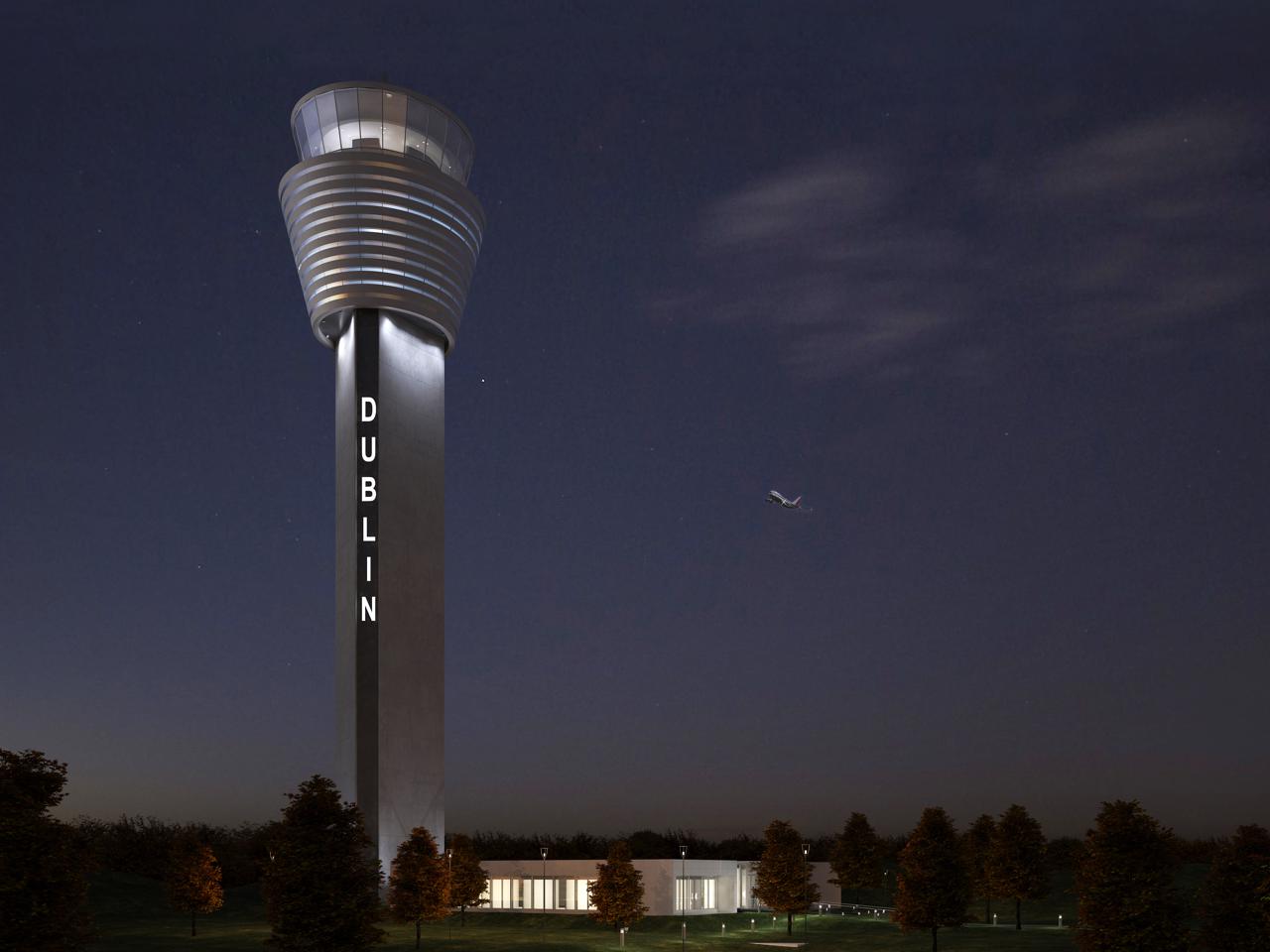

To provide a slim, elegant structure and as light as possible, most of the ancillary accommodation (technical rooms and associated plant) has been separated from the Tower and located in a single storey support facility. This support building is connected to the Cab Shaft with a fully glazed link corridor. The separation of the tower and support accommodation ensures that the free-standing quality of the Tower is unaffected and consequently the new facility appears as two distinct elements, each containing their own distinct functions.

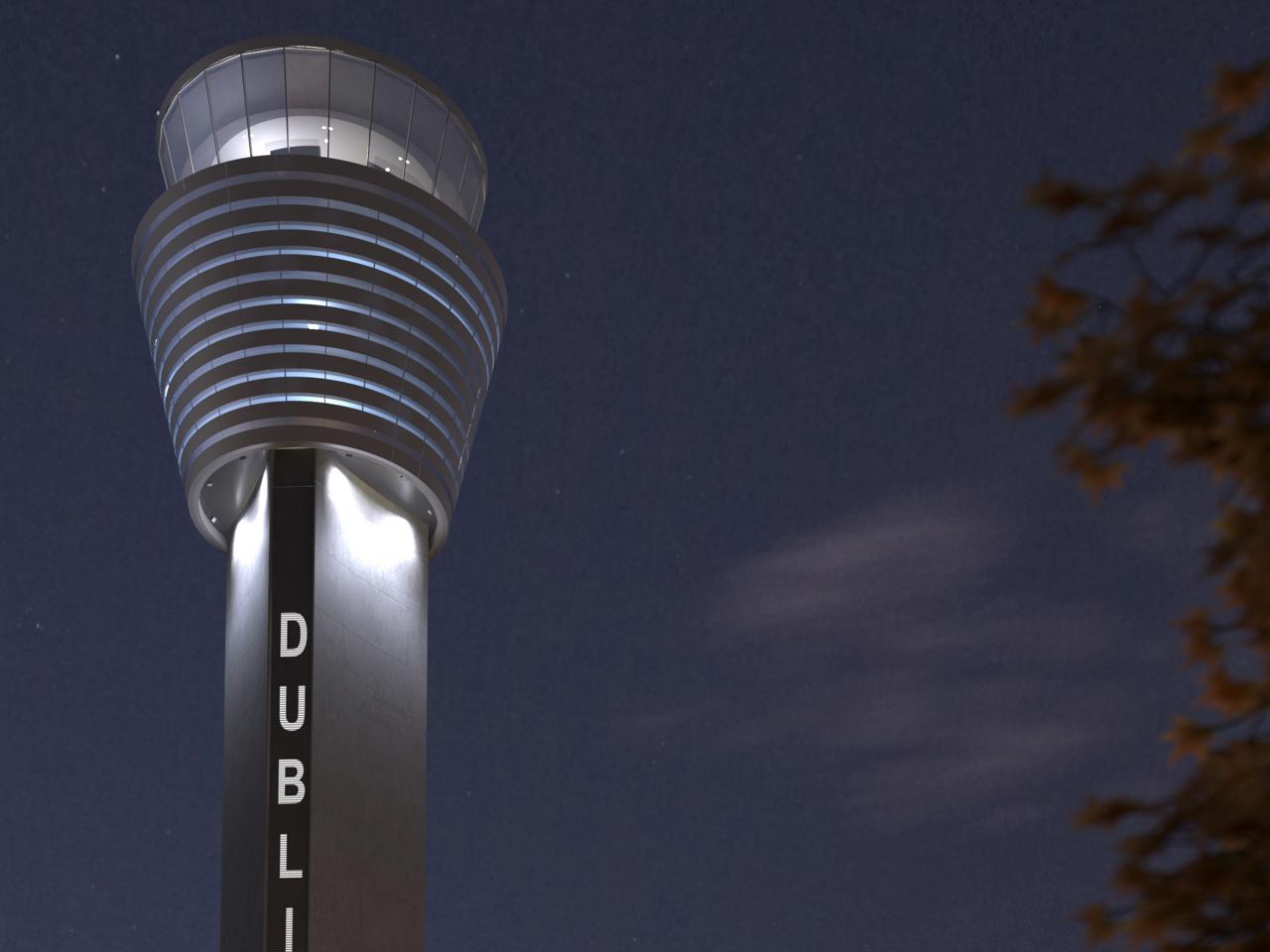

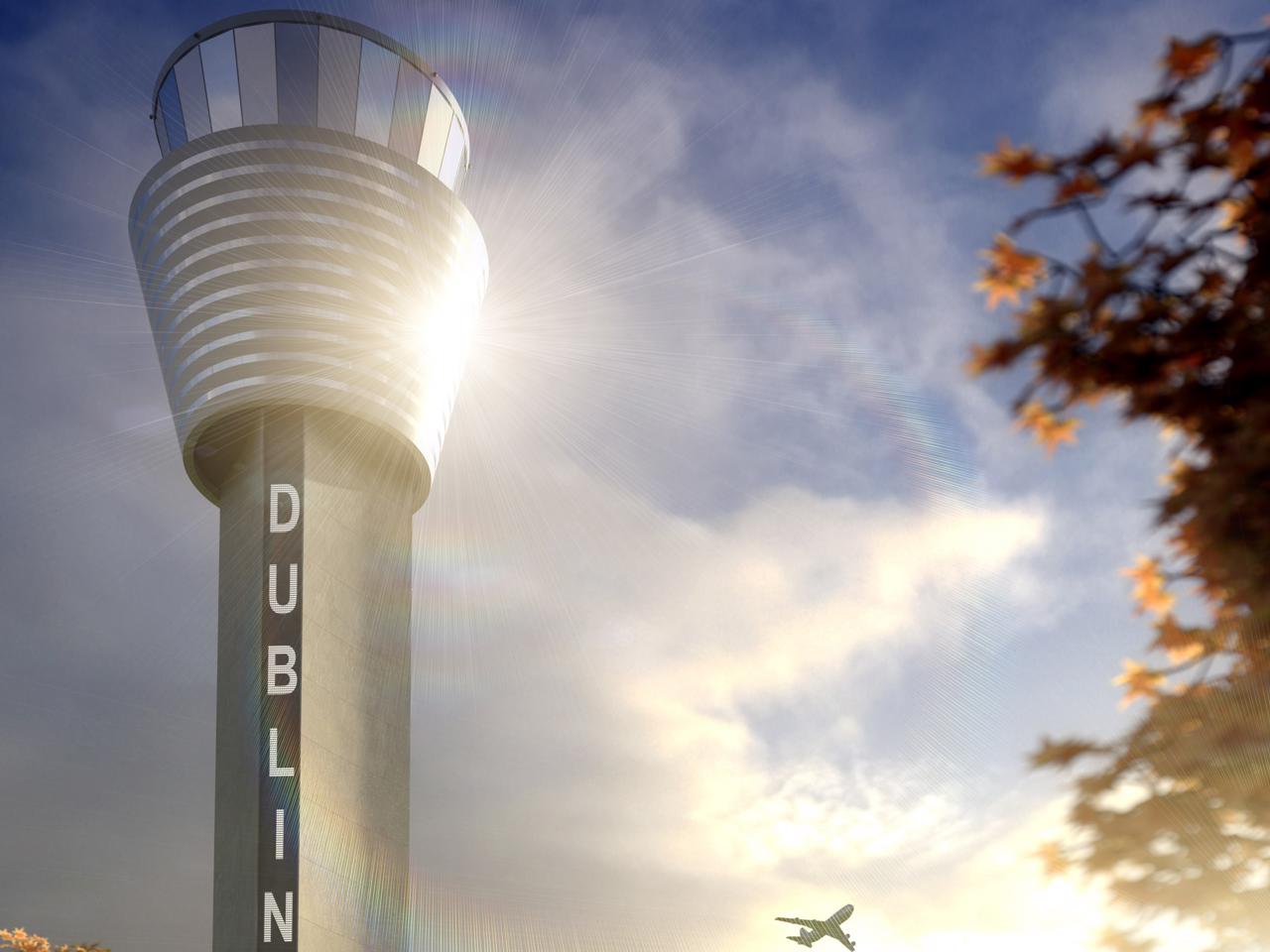

The Cab structure itself comprises 4 levels and contains essential technical facilities/ staff accommodation, plant space, technical equipment, maintenance facilities, and the VCR itself. The tapering cone shape of the cab is a result of the spatial requirements of the various functions at each level, and their relationship (in terms of proximity) to the VCR. The support shaft to the cab is an essential element of the structure and considerable effort has gone into making it appear as slender and unobtrusive as possible. Its triangular plan form derives from the 3 modes of vertical circulation from bottom to top: the 2 lifts and the single escape stairway.
